ConcurrentHashMap

我们都知道HashMap在并发下会产生数据不一致问题,所以衍生出了ConcurrentHashMap这样一个在并发环境下也能保证数据一致的Map,但是他的原理是底层代码是怎么写的呢?今天小编就带大家康康(其实是我自己得康康)

首先先看JDK1.7中的ConcurrentHashMap的源码是怎样的。

1.7

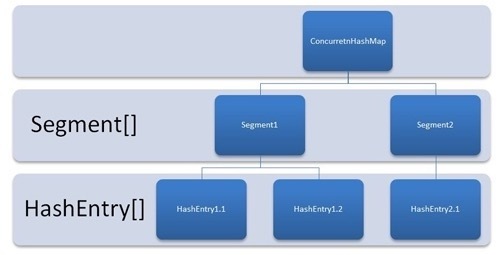

首先我们先康康他的结构吧。


核心成员变量

/**
 * Segment 数组,存放数据时首先需要定位到具体的 Segment 中。
 */
final Segment<K,V>[] segments;

transient Set<K> keySet;
transient Set<Map.Entry<K,V>> entrySet;

我们看看Segment的具体实现:

static final class Segment<K,V> extends ReentrantLock implements Serializable {

    private static final long serialVersionUID = 2249069246763182397L;

    // 和 HashMap 中的 HashEntry 作用一样,真正存放数据的桶,就是在hashmap的基础上加了一个粗粒度的容器,在容器中存放entry,然后将在put的时候将这个容器锁住,那么就可以保证并发下也可以保证数据一致性
    transient volatile HashEntry<K,V>[] table;

    transient int count;

    transient int modCount;

    transient int threshold;

    final float loadFactor;

}
//看看hashEntry的结构
static final class HashEntry<K,V> {
        final int hash; //hash值
        final K key;//键值
        volatile V value;//value
        volatile HashEntry<K,V> next;//链表的下一个节点(发生hash冲突的时候用)

        HashEntry(int hash, K key, V value, HashEntry<K,V> next) {
            this.hash = hash;
            this.key = key;
            this.value = value;
            this.next = next;
        }

        /**
         * Sets next field with volatile write semantics.  (See above
         * about use of putOrderedObject.)
         */
        final void setNext(HashEntry<K,V> n) {
            UNSAFE.putOrderedObject(this, nextOffset, n);
        }

        // Unsafe mechanics
        static final sun.misc.Unsafe UNSAFE;
        static final long nextOffset;
        static {
            try {
                UNSAFE = sun.misc.Unsafe.getUnsafe();
                Class k = HashEntry.class;
                nextOffset = UNSAFE.objectFieldOffset
                    (k.getDeclaredField("next"));
            } catch (Exception e) {
                throw new Error(e);
            }
        }
    }

原理上来说:ConcurrentHashMap 采用了分段锁技术,其中 Segment 继承于 ReentrantLock。不会像 HashTable 那样不管是 put 还是 get 操作都需要做同步处理,理论上 ConcurrentHashMap 支持 CurrencyLevel (Segment 数组数量)的线程并发。每当一个线程占用锁访问一个 Segment 时,不会影响到其他的 Segment。

接下来看看put方法吧

put方法

public V put(K key, V value) {
    //段
    Segment<K,V> s;
    if (value == null)
        throw new NullPointerException();
    int hash = hash(key);
    int j = (hash >>> segmentShift) & segmentMask;
    if ((s = (Segment<K,V>)UNSAFE.getObject          // nonvolatile; recheck
         (segments, (j << SSHIFT) + SBASE)) == null) //  in ensureSegment
        s = ensureSegment(j);
    return s.put(key, hash, value, false);
}
  1. 首先判断是不是null值
  2. 对key求hash值
  3. 使用hash值和segmentMask进行按位与(hash >>> segmentShift) & segmentMask
  4. 然后在segment内进行添加操作
final V put(K key, int hash, V value, boolean onlyIfAbsent) {
    		//尝试获取锁,如果没获取到的话,进行自旋
            HashEntry<K,V> node = tryLock() ? null :
                scanAndLockForPut(key, hash, value);
            V oldValue;
            try {
                HashEntry<K,V>[] tab = table;
                //找到在segment的位置
                int index = (tab.length - 1) & hash;
                //找到entry
                HashEntry<K,V> first = entryAt(tab, index);
                for (HashEntry<K,V> e = first;;) {
                    //如果这个entry不为null,那么可能是发生hash冲突或者key重复
                    if (e != null) {
                        K k;
                        //如果key重复,那么替换值
                        if ((k = e.key) == key ||
                            (e.hash == hash && key.equals(k))) {
                            oldValue = e.value;
                            if (!onlyIfAbsent) {
                                e.value = value;
                                ++modCount;
                            }
                            break;
                        }
                        e = e.next;
                    }
                    //否则创建新的节点,把他加入到segment中
                    else {
                        if (node != null)
                            node.setNext(first);
                        else
                            node = new HashEntry<K,V>(hash, key, value, first);
                        int c = count + 1;
                        if (c > threshold && tab.length < MAXIMUM_CAPACITY)
                            rehash(node);
                        else
                            setEntryAt(tab, index, node);
                        ++modCount;
                        count = c;
                        oldValue = null;
                        break;
                    }
                }
            } finally {
                unlock();
            }
            return oldValue;
}

private HashEntry<K,V> scanAndLockForPut(K key, int hash, V value) {fu'c'k
    HashEntry<K,V> first = entryForHash(this, hash);
    HashEntry<K,V> e = first;
    HashEntry<K,V> node = null;
    int retries = -1; // negative while locating node
    //尝试获取
    while (!tryLock()) {
        HashEntry<K,V> f; // to recheck first below
        if (retries < 0) {
            //先创建node
            if (e == null) {
                if (node == null)
                    node = new HashEntry<K,V>(hash, key, value, null);
                retries = 0;
            }
            else if (key.equals(e.key))
                retries = 0;
            else
                e = e.next;
        }
        //MAX_SCAN_RETRIES==Runtime.getRuntime().availableProcessors() > 1 ? 64 : 1;
        //如果达到最大自旋次数那么阻塞拿锁
        else if (++retries > MAX_SCAN_RETRIES) {
            lock();
            break;
        }
        else if ((retries & 1) == 0 &&
                 (f = entryForHash(this, hash)) != first) {
            e = first = f; // re-traverse if entry changed
            retries = -1;
        }
    }
    return node;
}
  1. 首先尝试获取锁,如果获取不到的话就自旋获取,如果重试的次数达到了 MAX_SCAN_RETRIES 则改为阻塞锁获取,保证能获取成功。
  2. 将当前 Segment 中的 table 通过 key 的 hashcode 定位到 HashEntry。
  3. 遍历该 HashEntry,如果不为空则判断传入的 key 和当前遍历的 key 是否相等,相等则覆盖旧的 value。
  4. 不为空则需要新建一个 HashEntry 并加入到 Segment 中,同时会先判断是否需要扩容。
  5. 释放锁

get方法

public V get(Object key) {
    Segment<K,V> s; // manually integrate access methods to reduce overhead
    HashEntry<K,V>[] tab;
    int h = hash(key);
    long u = (((h >>> segmentShift) & segmentMask) << SSHIFT) + SBASE;
    if ((s = (Segment<K,V>)UNSAFE.getObjectVolatile(segments, u)) != null &&
        (tab = s.table) != null) {
        for (HashEntry<K,V> e = (HashEntry<K,V>) UNSAFE.getObjectVolatile
                 (tab, ((long)(((tab.length - 1) & h)) << TSHIFT) + TBASE);
             e != null; e = e.next) {
            K k;
            if ((k = e.key) == key || (e.hash == h && key.equals(k)))
                return e.value;
        }
    }
    return null;
}

这个方法还是很好理解的

  1. 根据key的hash值找到segment
  2. 然后使用Unsafe类的UNSAFE.getObjectVolatile方法,原子的获取节点
  3. 返回获取到的值,因为是原子的获取所以每次返回的都是最新的。

1.8

结构

//最大容量
private static final int MAXIMUM_CAPACITY = 1 << 30;
//默认容量
private static final int DEFAULT_CAPACITY = 16;
//默认并发级别--下面会重点用到
private static final int DEFAULT_CONCURRENCY_LEVEL = 16;
//加载因子,同hashmap
private static final float LOAD_FACTOR = 0.75f;
//链表变成树的临界值,同hashmap
static final int TREEIFY_THRESHOLD = 8;
//最小变成树的容量,同hashmap
static final int MIN_TREEIFY_CAPACITY = 64;

//Map内节点的静态内部类,看到他们都继承了Map.Entry接口
static class Node<K,V> implements Map.Entry<K,V> {
    final int hash;//村hash值
    final K key;//存key值
    volatile V val;//存value值
    volatile Node<K,V> next;//

    Node(int hash, K key, V val, Node<K,V> next) {
        this.hash = hash;
        this.key = key;
        this.val = val;
        this.next = next;
    }

    public final K getKey()       { return key; }
    public final V getValue()     { return val; }
    public final int hashCode()   { return key.hashCode() ^ val.hashCode(); }
    public final String toString(){ return key + "=" + val; }
    public final V setValue(V value) {
        throw new UnsupportedOperationException();
    }

    public final boolean equals(Object o) {
        Object k, v, u; Map.Entry<?,?> e;
        return ((o instanceof Map.Entry) &&
                (k = (e = (Map.Entry<?,?>)o).getKey()) != null &&
                (v = e.getValue()) != null &&
                (k == key || k.equals(key)) &&
                (v == (u = val) || v.equals(u)));
    }
}

//红黑树定义,可以看到其继承了Node类
static final class TreeNode<K,V> extends Node<K,V> {
    TreeNode<K,V> parent;  // red-black tree links
    TreeNode<K,V> left;
    TreeNode<K,V> right;
    TreeNode<K,V> prev;    // needed to unlink next upon deletion
    boolean red;

    TreeNode(int hash, K key, V val, Node<K,V> next,
             TreeNode<K,V> parent) {
        super(hash, key, val, next);
        this.parent = parent;
    }

    Node<K,V> find(int h, Object k) {
        return findTreeNode(h, k, null);
    }

    /**
    * Returns the TreeNode (or null if not found) for the given key
    * starting at given root.
    */
    final TreeNode<K,V> findTreeNode(int h, Object k, Class<?> kc) {
        if (k != null) {
            TreeNode<K,V> p = this;
            do  {
                int ph, dir; K pk; TreeNode<K,V> q;
                TreeNode<K,V> pl = p.left, pr = p.right;
                if ((ph = p.hash) > h)
                    p = pl;
                else if (ph < h)
                    p = pr;
                else if ((pk = p.key) == k || (pk != null && k.equals(pk)))
                    return p;
                else if (pl == null)
                    p = pr;
                else if (pr == null)
                    p = pl;
                else if ((kc != null ||
                          (kc = comparableClassFor(k)) != null) &&
                         (dir = compareComparables(kc, k, pk)) != 0)
                    p = (dir < 0) ? pl : pr;
                else if ((q = pr.findTreeNode(h, k, kc)) != null)
                    return q;
                else
                    p = pl;
            } while (p != null);
        }
        return null;
    }
}

构造函数

//空构造器,啥也没干
public ConcurrentHashMap() {
}
//指定默认容量的构造器
public ConcurrentHashMap(int initialCapacity) {
    if (initialCapacity < 0)
        throw new IllegalArgumentException();
    int cap = ((initialCapacity >= (MAXIMUM_CAPACITY >>> 1)) ?
               MAXIMUM_CAPACITY :
               tableSizeFor(initialCapacity + (initialCapacity >>> 1) + 1));
    this.sizeCtl = cap;
}
//有默认元素的构造器
public ConcurrentHashMap(Map<? extends K, ? extends V> m) {
    this.sizeCtl = DEFAULT_CAPACITY;
    putAll(m);
}
//有加载因子和默认容量的构造器
public ConcurrentHashMap(int initialCapacity, float loadFactor) {
    this(initialCapacity, loadFactor, 1);
}
//有加载因子和默认容量和并发等级的构造器
public ConcurrentHashMap(int initialCapacity,
                         float loadFactor, int concurrencyLevel) {
    if (!(loadFactor > 0.0f) || initialCapacity < 0 || concurrencyLevel <= 0)
        throw new IllegalArgumentException();
    if (initialCapacity < concurrencyLevel)   // Use at least as many bins
        initialCapacity = concurrencyLevel;   // as estimated threads
    long size = (long)(1.0 + (long)initialCapacity / loadFactor);
    int cap = (size >= (long)MAXIMUM_CAPACITY) ?
        MAXIMUM_CAPACITY : tableSizeFor((int)size);
    this.sizeCtl = cap;
}

put方法

final V putVal(K key, V value, boolean onlyIfAbsent) {
    if (key == null || value == null) throw new NullPointerException();
    //和HashMap的区别,key和value都不能是null
    //hash方法还是一样的(h ^ (h >>> 16)) & HASH_BITS;
    int hash = spread(key.hashCode());
    int binCount = 0;
    for (Node<K,V>[] tab = table;;) {
        Node<K,V> f; int n, i, fh;
        //如果还没初始化tables的话,那么初始化他
        if (tab == null || (n = tab.length) == 0)
            tab = initTable();
        //f为当前 key 定位出的 Node,如果为空表示当前位置可以写入数据,利用 CAS 尝试写入,失败则自旋保证成功。
        else if ((f = tabAt(tab, i = (n - 1) & hash)) == null) {
            if (casTabAt(tab, i, null,
                         new Node<K,V>(hash, key, value, null)))
                break;                   // no lock when adding to empty bin
        }
        //如果当前位置的 hashcode == MOVED == -1,则需要进行扩容。
        else if ((fh = f.hash) == MOVED)
            tab = helpTransfer(tab, f);
        //都不满足则利用 synchronized 锁写入数据。
        else {
            V oldVal = null;
            //加锁,然后下面的逻辑就是插入的逻辑了。
            synchronized (f) {
                if (tabAt(tab, i) == f) {
                    if (fh >= 0) {
                        binCount = 1;
                        for (Node<K,V> e = f;; ++binCount) {
                            K ek;
                            if (e.hash == hash &&
                                ((ek = e.key) == key ||
                                 (ek != null && key.equals(ek)))) {
                                oldVal = e.val;
                                if (!onlyIfAbsent)
                                    e.val = value;
                                break;
                            }
                            Node<K,V> pred = e;
                            if ((e = e.next) == null) {
                                pred.next = new Node<K,V>(hash, key,
                                                          value, null);
                                break;
                            }
                        }
                    }
                    else if (f instanceof TreeBin) {
                        Node<K,V> p;
                        binCount = 2;
                        if ((p = ((TreeBin<K,V>)f).putTreeVal(hash, key,
                                                       value)) != null) {
                            oldVal = p.val;
                            if (!onlyIfAbsent)
                                p.val = value;
                        }
                    }
                }
            }
            if (binCount != 0) {
                if (binCount >= TREEIFY_THRESHOLD)
                    treeifyBin(tab, i);
                if (oldVal != null)
                    return oldVal;
                break;
            }
        }
    }
    addCount(1L, binCount);
    return null;
}

我们可以看到JDK1.8的ConcurrentHashMap相比JDK1.7中的ConcurrentHashMap,放弃了Segment的使用,同时增加了红黑树的数据结构,来保证再有hash冲突时能够更好的发挥性能。

其实可以看出JDK1.8版本的ConcurrentHashMap的数据结构已经接近HashMap,相对而言,ConcurrentHashMap只是增加了同步的操作来控制并发,从JDK1.7版本的ReentrantLock+Segment+HashEntry,到JDK1.8版本中synchronized+CAS+HashEntry+红黑树。

1.数据结构:取消了Segment分段锁的数据结构,取而代之的是数组+链表+红黑树的结构。

2.保证线程安全机制:JDK1.7采用segment的分段锁机制实现线程安全,其中segment继承自ReentrantLock。JDK1.8采用CAS+Synchronized保证线程安全。

3.锁的粒度:原来是对需要进行数据操作的Segment加锁,现调整为对每个数组元素加锁(Node)。

4.链表转化为红黑树:定位结点的hash算法简化会带来弊端,Hash冲突加剧,因此在链表节点数量大于8时,会将链表转化为红黑树进行存储。

5.查询时间复杂度:从原来的遍历链表O(n),变成遍历红黑树O(logN)。
